Description

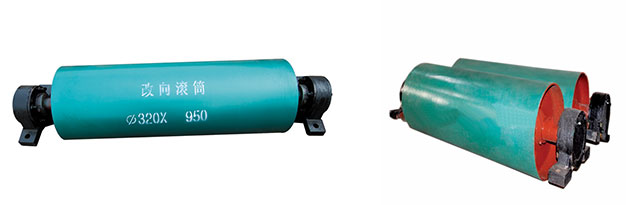

Heavy duty carbon steel bend drum bottom conveyor belting pulley for conveyor system

Type

tail bend bottom conveyor pulley

Pipe / tube/shell

1) Material : Q235 welded steel
2) Diameter : 400 mm
3) Length:  600mm ~ 1600 mm
4) Thickness: 6mm, 10mm or as require

Type conveyor

DTII DTII(A) TD75

Shaft / axis

1) Material:  Cold drawn steel C45(DIN)
2) Diameter: 55 65 85 110 130

Bearing

big roving crack, deep groove ball with double sealing

Welding

pipe and bearing housing with automatic welding

Surface

smooth steel surface, rubber face

Color

Red, yellow, blue or as require

Standard

ISO9001:2008 CEMA DIN TUV

Application

Used in coal mine, steel industry, cement industry and so on

Service life

More than 30,000 hours

Type

Belt width(mm)

Standard diameter(mm)

Length(mm)

motor pulley

500

500

Length of pulley
depends on the
width of conveyo
belt

650

500~630

800

630~1000

1000

800~1150

1200

800~1150

1400

1000~1350

1600

1150~1600

1800

1150~1800

2000

1350~2000

2200

1600~2200

2400

1800~2400
