        Tubular Conveyor Belt

        Tubular Conveyor Belt

        Views:

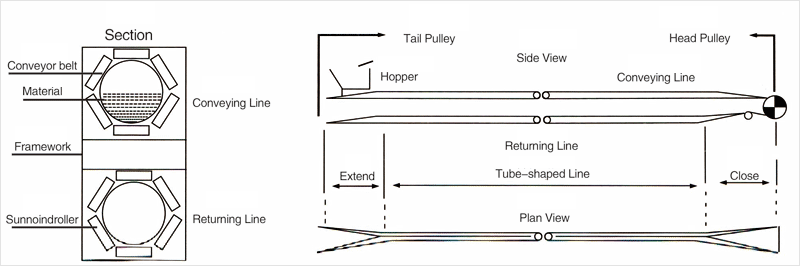

        Tubular conveyor belt is used to support pipe belt conveyor. The tubular shape is formed in the whole or part of transportation with the help of external force. We use high strength canvas or steel cord as belt carcass, and high strengh, high abrasion resistant rubber as covers. When the belt is running, it transform plain shape into U shape, and finally into tubular shape, so as to achieve closed transportation.


        Characteristics:

        Suitable stiffness can make the belt transform a pipe shape, bend easily, and keep it round enough.

        Overlapped part of soft belt edges is sealed well, which results in fatigue resistance, abrasion resistance, and stable carrying capacity.

        For enclosed transportation, materials won’t fly, fall or influence the environment, especially conveying powdery, paste fine materials.

        Protect materials from environmental influence of wind, rain and snow, etc.

        The belt can bend easily and convey high loading materials to and fro at high speed and a big angle.

        Flexible transporting line, the belt can be bent into a relatively small radius and convey materials at a vertical, horizontal or three-dimension angle.

        Sectional area is small.

        Low noise.

        Both edge part can be rolled up into tubular shape to avoid material falling. The belt is widely used in metallurgy, power, chemical industry, port, wharf, construction materials, coal, mine, grain, etc. The belt has types of abrasion/heat/cold/acid-alkali/fire/static resistance.

        Width & pipe diameter
        Belt width & corresponding pipe diameter (unit: mm)

        Belt width

        360 600 800 1000 1100 1300 1600 1850 2250 2450 2900 3100

        Pipe diameter

        100 150 200 250 300 350 400 500 600 700 800 850

        Used for tubular conveyor's transportation

        Cover properties

        Tensile strength

        Breaking elongation

        Abrasion loss

        Anti ozonea

        Change rate of tensile strength & breaking elongation after hot air ageingb, %

        D

        18.0

        400

        90

        No crack

        -25~+25

        H

        24.0

        450

        120

        No crack

        -25~+25

        T1、T2

        10.0

        300

        200

        -

        -45~+45

        a. Anti ozone testing conditions: concentration (50±5)×10-8 (volume fraction), temperature (40±2)℃, elongation (40±2)%, time 96h.
        b. Hot air ageing testing conditions: D, H type belt 70℃×168h; T1 type belt 100℃×168h; T2 type belt 125℃×168h.

        Note: D—high abrasion working conditions; H—high tear working conditions; T1—Heat resistance 100℃ working conditions; T2—Heat resistance 125℃ working conditions.
